Editorial

Inferior alveolar nerve injuries and impacted lower third molars: The importance of third dimension
József Szalma
Department of Oral and Maxillofacial Surgery, University of Pécs, Pécs, Hungary, H-7621.

Article ID: 100006S05JS2015
doi:10.5348/S05-2015-6-ED-4

Address correspondence to:
József Szalma
DMD, PhD, Oral Surgeon, Associate Professor
Head of Department, Department of Oral and Maxillofacial Surgery
University of Pécs, 5 DischkaGy Street, Pécs
Hungary, H-7621
Phone: +36 72 535924

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar article in Pumed] [Similar article in Google Scholar]

How to cite this article
Szalma J. Inferior alveolar nerve injuries and impacted lower third molars: The importance of third dimension. Edorium J Surg 2015;2:12–15.


One of the most frequent oral surgical intervention is the removal of impacted wisdom-teeth. Inferior alveolar nerve (IAN) injury is a possible and unpleasing complication of surgical removal of impacted lower third molars. The incidence of irreversible injuries according to literature is usually below 1%, but reversible injuries are reported between 0.4–8.4% [1].

Anesthesia or paresthesia of the lower lip (consequent mental nerve sensory function disturbance) can significantly change patients' quality of life. Missing or reduced sensory innervation of the lower lip causes difficulties during eating and drinking, and uncontrolled bite trauma of the soft tissues is more frequent.

To predict "high-risk" cases more accurately or to try to avoid nerve injuries, several diagnostic and surgical efforts are introduced and usually performed, such as coronectomy (only the crown of the third molar tooth is removed), orthodontically assisted extraction (the third molar tooth is extracted slowly with the help of orthodontic forces using different appliances, e.g., springs, wires after some retention is attached on tooth's surface), spontaneous migration (only small portions of the impacted part of the third molar's crown are removed with burs and the tooth can begin to migrate away from the dental canal, so later it could be extracted), pericoronal ostectomy (the surrounding bone is removed, which caused impaction) and the so called inward fragmentation method (with the visual aid of an endoscope the tooth is sectioned to many tiny parts without damaging the alveolar bone or hopefully the nerve) [2] [3] [4] [5] [6] [7] [8]. The usage of piezoelectric bone preparing devices also give the possibility to reduce nerve injuries (soft tissues, such as the neurovascular bundle can "vibrate together" with piezoelectric-tips avoiding irreversible injury) when bone removal is necessary near to the IAN at the apical region of third molars.

Diagnostic efforts include the analysis of two dimensional (panoramic radiography, periapical-, occlusal radiographs, vertical tube shifting technique) and three dimensional imaging methods such as computed tomography (CT) scan, cone beam CT (CBCT) scan or magnetic resonance imaging (MRI) scan. The benefits and limitations of specific and non-specific "high-risk" signs indicating intimate connections between third molar and the IAN are well investigated according to panoramic radiography, however the third dimension can carry several times important additional information, including the exact buccolingual localization of the IAN, or the exact root anatomy of the tooth [9] [10] [11] [12] [13] [14] [15]. One of the biggest challenge during third molar's presurgical workup is to keep patients' radiation as low as possible (ALARA) but to get least as many information which is mandatory to avoid intraoperative nerve injury complications or to make the best decision in the "to remove or not to remove" question or considering alternative removal possibilities (mentioned above). The routine usage of three dimensional diagnostics is not acceptable in this field of oral surgery yet.

In the following cases the possibility of IAN damage could be more or less predicted according to panoramic radiography, but the patient's strict rejection, even though excessive information about possible neurological complications were detailed, of further three dimensional diagnostic methods led to "nerve endangered" situations.

In the first representative case (Figure 1), the specific high risk panoramic sign, darkening of the third molar's root, can be observed before tooth removal. This sign was highly associated with IAN exposure (when the neurovascular bundle is visible and palpable) and IAN injury according to several studies [9] [10] [11] [12] [13] [14]. After tooth removal during inspection of the alveolus, the IAN was visible on the buccal side of the socket, while macroscopic injury and concurrent paresthesia was absent. These neurovascular bundle exposures can be followed by postoperative paresthesia up to 20% of exposures, without visible signs of injury or in absence of excessive bleeding [16]. The buccal localization of the IAN means usually higher chance for nerve injury, because bone removal is performed in most of the cases buccally, increasing the possibility of direct trauma to the nerve by the drills.

Similarly to the first case, in the second case darkening was seen on the third molar's root ( (Figure 2). The clearly visible separation of the mesial and distal roots in the middle third of the tooth and the slightly rotated position of the tooth suggested the possibility of "roots surrounding the IAN" situation. After sectioning of the crown and separating carefully the two roots, roots could be carefully removed from beside of the nerve. However, the nerve's continuity was preserved (Figure 2). A paresthesia of the nerve was observed in the first six postoperative weeks. Vitamin B complex was prescribed for the patient during this period and neurosensory disturbances healed totally.

The third case was similar to the second case, but the chance of "surrounded nerve" was rejected by the trainee oral surgeon during surgery, because there was no visible separation of the roots after buccal bone removal (Figure 3). After the removal of the tooth the small lingual root, which formed a tunnel for the IAN, was observed by the colleague, the possibility of nerve disruption (excessive bleeding made visualization and photo-documentation impossible) was expected. In case of total postoperative anesthesia the repair (e.g., suturing, grafting) of the transected IAN nerve stumps is usually recommended after 3–4 months postoperatively.

Lastly a case is presented (Figure 4), where the 3D CBCT image clearly identify the buccal localization of the IAN (determining the maximum depth of buccal bone removal above the dental canal), showing the exact root anatomy of the third molar and the roots' relation to the nerve. According to the panoramic radiography a coronectomy was suggested, while after the CBCT a tooth removal was performed, without any postoperative IAN neurologic disturbance.

In fact, neurological complications of third molar surgical removal cannot be reduced to zero level. Despite of any comprehensive diagnostic analysis, including three-dimensional CBCT scan, nerve injury occasionally will occur. The informed consent and the exact determination of the indications for surgical tooth removal is substantial.

Keywords: Inferior alveolar nerve, Nerve injury, Paresthesia, Panoramic radiography, Third molar

Cursor on image to zoom/Click text to open image
Figure 1: The panoramic radiograph showing "dark band" specific risk sign on the right impacted third molar's roots (white arrow). After tooth removal, the inferior alveolar nerve (more exactly the neurovascular bundle) became visible (black arrow). The groove formation of the removed tooth's roots (blue arrow) explains the radiographic "dark band" formation; inferior alveolar canal caused groove lets more radiation through the molar tooth.


Cursor on image to zoom/Click text to open image
Figure 2: The "dark band" formation on the root (white arrow) was combined with slight rotation of the tooth, while separation of the mesial and distal roots of the third molar tooth was possible. Sectioned removal (firstly the crown, after the roots separately) gave the chance for the neurovascular bundle to keep its integrity (blue arrow). In the photograph the roots of removed tooth were glued together for representing the original situation (red arrow).


Cursor on image to zoom/Click text to open image
Figure 3: Dark band is seen on the roots in the panoramic radiograph (white arrow). After tooth removal, the metal wire represents the suspected course of the inferior alveolar neurovascular bundle. The lingual root and its nerve-surrounding conformation (blue arrow) could be detected on cone-beam computed tomography scan image, with the possible modification of the removal to coronectomy.



Cursor on image to zoom/Click text to open image

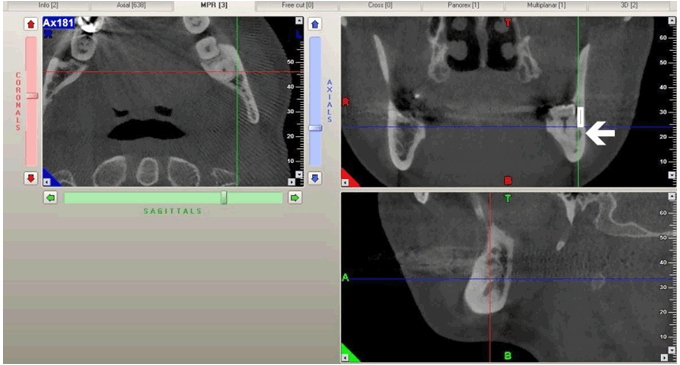

Figure 4: The cone beam computed tomography scan showing clearly the buccal position of the inferior alveolar canal (white arrow), the root anatomy in the coronal plane and their exact conformation. The extent and depth of buccal bone removal can be planned accurately (white bar).


References
  1. Szalma J, Lempel E, Jeges S, Szabó G, Olasz L. The prognostic value of panoramic radiography of inferior alveolar nerve damage after mandibular third molar removal: retrospective study of 400 cases. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2010 Feb;109(2):294–302.   [CrossRef]   [Pubmed]    Back to citation no. 1
  2. Patel V, Sproat C, Kwok J, Beneng K, Thavaraj S, McGurk M. Histological evaluation of mandibular third molar roots retrieved after coronectomy. Br J Oral Maxillofac Surg 2014 May;52(5):415–9.   [CrossRef]   [Pubmed]    Back to citation no. 2
  3. Pogrel MA. An update on coronectomy. J Oral Maxillofac Surg 2009 Aug;67(8):1782–3.   [CrossRef]   [Pubmed]    Back to citation no. 3
  4. Landi L, Manicone PF, Piccinelli S, Raia A, Raia R. A novel surgical approach to impacted mandibular third molars to reduce the risk of paresthesia: a case series. J Oral Maxillofac Surg 2010 May;68(5):969–74.   [CrossRef]   [Pubmed]    Back to citation no. 4
  5. Montevecchi M, Incerti Parenti S, Checchi V, Palumbo B, Checchi L, Alessandri Bonetti G. Periodontal healing after 'orthodontic extraction' of mandibular third molars: a retrospective cohort study. Int J Oral Maxillofac Surg 2014 Sep;43(9):1137–41.   [CrossRef]   [Pubmed]    Back to citation no. 5
  6. Park W, Park JS, Kim YM, Yu HS, Kim KD. Orthodontic extrusion of the lower third molar with an orthodontic mini implant. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2010 Oct;110(4):e1–6.   [CrossRef]   [Pubmed]    Back to citation no. 6
  7. Tolstunov L, Javid B, Keyes L, Nattestad A. Pericoronal ostectomy: an alternative surgical technique for management of mandibular third molars in close proximity to the inferior alveolar nerve. J Oral Maxillofac Surg 2011 Jul;69(7):1858–66.   [CrossRef]   [Pubmed]    Back to citation no. 7
  8. Engelke W, Beltrán V, Cantín M, Choi EJ, Navarro P, Fuentes R. Removal of impacted mandibular third molars using an inward fragmentation technique (IFT) - Method and first results. J Craniomaxillofac Surg 2014 Apr;42(3):213–9.   [CrossRef]   [Pubmed]    Back to citation no. 8
  9. Szalma J, Bata Z, Lempel E, Jeges S, Olasz L. Quantitative pixel grey measurement of the "high-risk" sign, darkening of third molar roots: a pilot study. Dentomaxillofac Radiol 2013;42(8):20130160.   [CrossRef]   [Pubmed]    Back to citation no. 9
  10. Szalma J, Vajta L, Lempel E, Jeges S, Olasz L. Darkening of third molar roots on panoramic radiographs: is it really predominantly thinning of the lingual cortex? Int J Oral Maxillofac Surg. 2013 Apr;42(4):483–8.   [CrossRef]   [Pubmed]    Back to citation no. 10
  11. Szalma J, Lempel E, Jeges S, Olasz L. Digital versus conventional panoramic radiography in predicting inferior alveolar nerve injury after mandibular third molar removal. J Craniofac Surg 2012 Mar;23(2):e155–8.   [CrossRef]   [Pubmed]    Back to citation no. 11
  12. Szalma J, Lempel E, Csuta T, Vajta L, Jeges S, Olasz L. The specific panoramic radiographic signs and their relation with inferior alveolar nerve injuries after mandibular third molar surgery. Fogorv Sz 2011 Mar;104(1):27–32.   [Pubmed]    Back to citation no. 12
  13. Szalma J, Lempel E, Jeges S, Olasz L. Darkening of third molar roots: panoramic radiographic associations with inferior alveolar nerve exposure. J Oral Maxillofac Surg 2011 Jun;69(6):1544–9.   [CrossRef]   [Pubmed]    Back to citation no. 13
  14. Szalma J, Lempel E, Csuta T, Bártfai D, Jeges S, Olasz L. The role of panoramic radiography in assessing the risk of injury to the inferior alveolar nerve before the extraction of mandibular wisdom teeth. The effect of the extent of root curvature and inferior alveolar canal-root tip overlap on the risk assessment. Fogorv Sz 2010 Jun;103(2):43–8.   [Pubmed]    Back to citation no. 14
  15. Jaju PP. Localization of mandibular canal by buccal object rule. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2010 Jun;109(6):799–800.   [CrossRef]   [Pubmed]    Back to citation no. 15
  16. Tay AB, Go WS. Effect of exposed inferior alveolar neurovascular bundle during surgical removal of impacted lower third molars. J Oral Maxillofac Surg 2004 May;62(5):592–600.   [CrossRef]   [Pubmed]    Back to citation no. 16

[HTML Abstract]   [PDF Full Text]

Author Contributions:
József Szalma – Substantial contributions to conception and design, Acquisition of data, Analysis and interpretation of data, Drafting the article, Revising it critically for important intellectual content, Final approval of the version to be published
Guarantor of submission
The corresponding author is the guarantor of submission.
Source of support
None
Conflict of interest
Authors declare no conflict of interest.
