Original Article

Diagnosis and management of suprarenal incidentalomas at Hospital Universitario Fundación Santa Fe de Bogotá: Experience over ten years
Francisco Javier Díaz, Díaz FJ1, Freddy Jean Karlo Toloza Bonilla, Toloza FJK2, Martha Catalina Morales, Morales MC2, Maria Laura Ricardo, Ricardo ML2, Manuel Enrique Cadena, Cadena ME1
1MD, Surgery department. Hospital Universitario Fundación Santa Fe de Bogotá. Associate professor School of Medicine, Universidad de los Andes. Bogotá, Colombia.
2Medicine students, Universidad de los Andes, Bogotá, Colombia.

Article ID: 100014S05FD2016
doi:10.5348/S05-2016-14-OA-4

Address correspondence to:
Freddy Jean Karlo Toloza
Carrera 1 No 18 A - 10 Bloque Q Piso 8
Bogotá
Colombia

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar article in Pumed] [Similar article in Google Scholar]

How to cite this article
Díaz FJ, Toloza FJK, Morales MC, Ricardo ML, Cadena ME. Diagnosis and management of suprarenal incidentalomas at Hospital Universitario Fundación Santa Fe de Bogotá: Experience over ten years. Edorium J Surg 2016;5:13–17.


Abstract
Aims: This article presents the experience in the diagnosis and surgical management of adrenal incidentalomas between 2005 and 2015, in a reference center of Bogotá, Colombia.
Methods: Patients were selected for the data base available in the surgical operating rooms at Hospital Universitario Fundación Santa Fe de Bogota, between January 2005 and January 2015. An analysis of medical records was made taking into account clinical and surgical variables, complications and patient follow-up.
Results: A total of 50 medical records were included in the analysis. The middle-age population had a higher frequency compared with older population. Initial laboratory studies were conducted in 48-70% of the cases. Regards the type of surgical approach, 10% of the adrenalectomy was performed by laparotomy, while 90% was performed through laparoscopic approach. Perioperative and postoperative complications were very low or absent in the overall study population.
Conclusion: It was reported a higher prevalence of functional mass, mainly, aldosterone-producing tumor, that was the less frequent in previous studies. The evident increase in the use of conventional laparoscopic opens a panorama to new indications, like a great size or worse malignant potential. Currently, laparoscopy represents the gold standard in the management for adrenal mass.

Keywords: Adrenal incidentalomas, Cushing syndrome, Myelolipoma, Pheochromocytoma


Introduction

Adrenal incidentalomas are defined as a mass greater than 1 cm in diameter on radiological study, specially computerized axial tomography (CT) or magnetic resonance (MR), realized in the context of a concomitant pathology [1]. Previously, it has been described a prevalence of 4.4%, but now it is approximately 10% due to the technological development on diagnostic radiology [1]. The workup of adrenal incidentalomas includes imaging, chemistry and clinical issues that aim to determine the origin and behavior of these mass. About 89.7% of total mass correspond to non- functional adenomas; and in the group of functional masses, 6.7% presents a subclinical Cushing syndrome, 3.1% are pheochromocytomas, and only 0.6% debuts with Conn syndrome or hyperaldosternonism [2].

Regarding treatment, currently exists many surgical approaches, being today the transperitoneal lateral laparoscopy the most frequently used, looking for reduction in intra and postoperative complications [3]. However, some variables argue the use of another approach, like laparotomy in the cases of higher malignant potential, a higher diameter (>10 cm) or a bilateral compromise on adrenal glands [4][5].

This article exposes the prevalence of biochemistry, histologic, imaging and clinical characteristics of adrenal incidentalomas, and also the diagnostic and surgical approach most frequently used in the workup of adrenal incidentalomas on a surgery reference center at Bogota, Colombia.


Materials and Methods

Selection of cases
Patients were selected for the database available in the surgical operating rooms at Hospital Universitario Fundación Santa Fe de Bogota. Inclusion criteria are patients scheduled for adrenalectomy for adrenal incidentaloma, between January 2005 to January 2015. Exclusion criteria: inability to access complete patient history.

Analysis of Medical Records
The analysis of medical records of patients takes into account clinical variables, surgical variables, complications and patient follow-up. The analysis of medical records was conducted by three researchers independently. The information on the medical history will be obtained from the Integrated Health Care System HIS-ISIS; and medical records of private practices of physicians.

Statistical analysis
SAS 5.1 was used for data analysis, a simple statistical analysis was conducted to estimate the prevalence of qualitative variables, percentage composition of the study population and the average of the qualitative continue variables. Similarly, chi-square tests were performed to determine associations between nominal variables.


Results

A total of 53 medical records of patients with initial surgical management of adrenalectomy for adrenal incidentaloma, were found during the study time. For the analysis three patients are excluded: Two individuals belonging to the pediatric population and a subject because it was management commitment adrenal pathology, but not exactly an incidentaloma. At the end a total of 50 cases were included.

The gender distribution within the study cases was very similar, being slightly higher in women (54% vs. 46%). In the distribution by age, middle-age population had a higher frequency of incidentalomas, being much lower in the extremes ages (Figure 1).

The biannual frequency of surgical management of incidentalomas had an upward trend since the beginning of the study period, with the highest peak in the last two years. The laparoscopic approach was more frequent and increasing trend, while the approach by laparotomy remained stable, with no more than two biannual cases in time to study (Figure 2).

Clinical and laboratory evaluation
The most common clinical features were hypertension (76%), dyslipidemia (36%), symptoms or diagnosis of diabetes mellitus type II (26%), headache (20%) and palpitations (18%). It is important to note that these symptoms were evaluated after the incidentaloma diagnosis was made.

Initial laboratory study of the etiology was conducted between 48–70% of cases, mainly with measurements of serum or urinary catecholamines, aldosterone/renin ratio, 24-hours urine cortisol or low dose dexamethasone suppression test and serum dehydroepiandrosterone sulfate (DHEAS) (Figure 3).

No statistically significant dependence between the symptoms and the positive results of the laboratory evaluation (χ2 = 0.44, p-value 0.5). Computerized Axial Tomography was the most frequently radiological study used (78%) for incidentaloma diagnosis; followed by Nuclear Magnetic Resonance (18%) and abdominal ultrasonography (4%).

Indication and surgical approach
The most common surgical indication was altered initial laboratory profile, followed by the severity of the clinical manifestations (Figure 4). Other indications of radiological nature were less frequent, as size >4 cm, irregular margins, highly vascularized and accelerated growth rate (> 2 cm / year).

Related to the type of surgical approach used, 10% of the adrenalectomy was performed by laparotomy (60% median laparotomy – Chevron' laparotomy 40%); while 90% was performed by laparoscopy. It is important to note that 10% of the laparoscopic approach was performed through retroperitoneoscopy, an approach that has gained favoritism in recent years in the adrenalectomy.

Pathological diagnosis
The diagnosis by histology showed that the most frequent diagnosis was the aldosterone or cortisol producer adenoma, followed by non-producing adenoma. Other diagnoses in order of frequency were pheochromocytoma, myelolipoma, carcinoma, metastases and other types of adrenal masses (Figure 5).

Complications and postoperative follow-up
Perioperative and postoperative complications were very low or absent in the overall study population. Major bleeding occurred in 2% of cases and no cases of surgical site infection or recurrence of the disease during the follow-up period.

In the case of laparoscopic adrenalectomy was a statistically significant difference for risk of major bleeding in relation to approach by laparotomy (χ2 = 9.18, p-value 0.0024). No statistically significant difference between the type of surgical approach and time of discharge was found. (Test t = 0.28, p-value 0.78) (Figure 6).

Cursor on image to zoom/Click text to open image

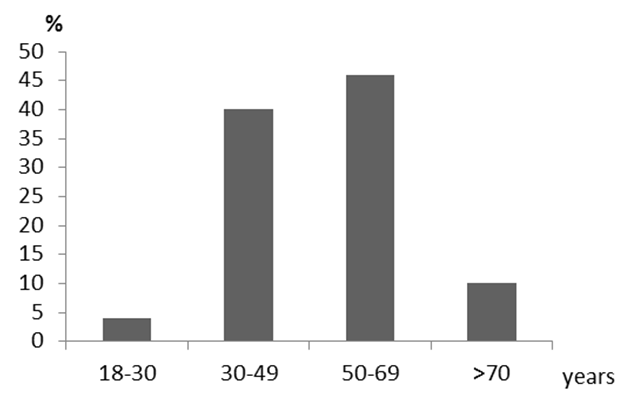

Figure 1: Distribution of the population by age.


Cursor on image to zoom/Click text to open image

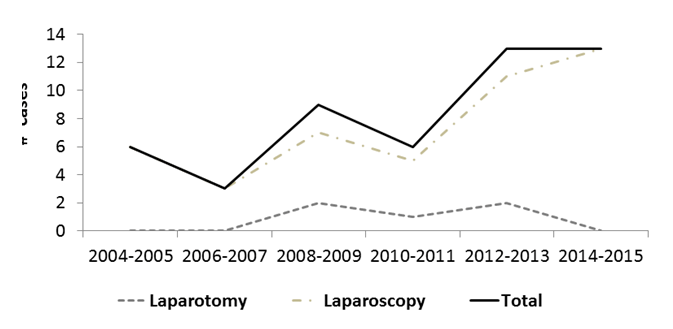

Figure 2: Total biannual distribution and by surgical approach of incidentalomas.


Cursor on image to zoom/Click text to open image

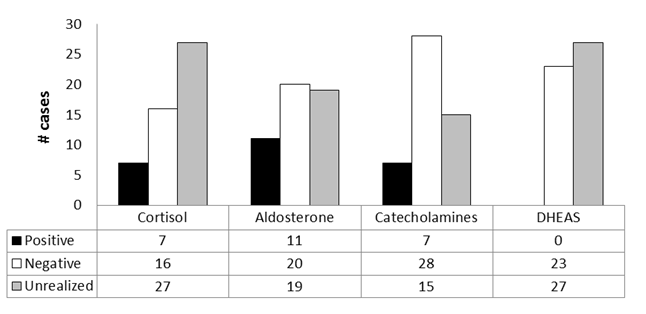

Figure 3: Distribution of laboratory evaluation.


Cursor on image to zoom/Click text to open image

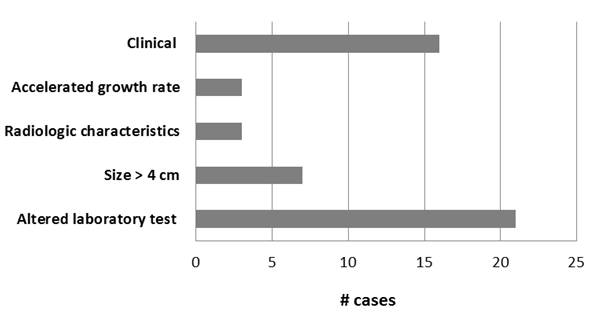

Figure 4: Distribution of clinical and paraclinical characteristics as surgical indication.



Cursor on image to zoom/Click text to open image

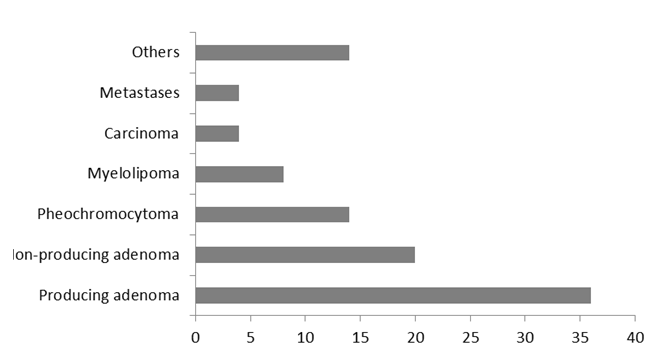

Figure 5: Histological diagnosis of surgical pathology.



Cursor on image to zoom/Click text to open image

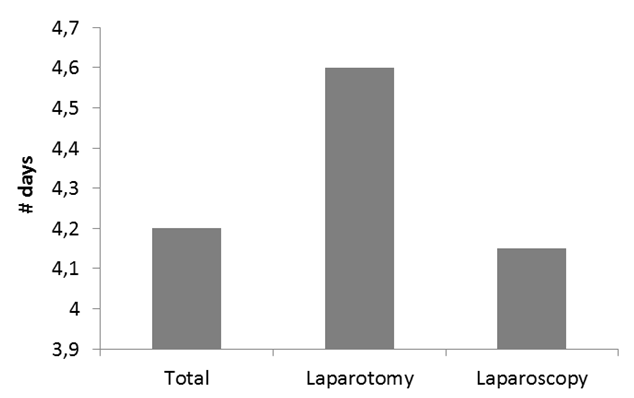

Figure 6: Hospital stay by type of surgical approach.



Discussion

The incidence of adrenal masses in terms of sex is similar to the literature, being slightly more common in women. The age of great incidence is also consistent with prior studies [6]. Previously, the detection of adrenal masses on post-mortem analysis reports a prevalence of 8.7% [6]. However, nowadays the advent of better imaging methods allows an earlier and efficient diagnosis, moreover, a rapid management with the consequent reduction in long term complications. The most frequent image for diagnosis is the CT followed by MR [6].

Over the ten year of following in our study, it has reflected the global trend to do interventions with a better impact in terms of morbid-mortality for Patients; the best example is the laparoscopic abdominal surgery. However, Germnanin reported on 2011 that the size and malignant risk are predictors of a non-laparoscopic approach.

Also, a study accomplished by "Francophone Association of Endocrine Surgery (AFCE)" on 2007 showed that in incidental masses with a size great of 9 cm the frequency of laparoscopic approach decreases 30% [3]. In contrast, we report that the trend over the last years on HU-FSFB is to extent the laparoscopic approach the trend over the last years on HU-FSFB is to extent the laparoscopic approach regardless the size mass or malignant potential. The unique indications for laparotomy that persist are bilateral adrenal gland compromise. It lets make way to the continuous use of laparoscopic adrenalectomy as the standard method in the management of adrenal masses.

In contrast with literature, where the clinical manifestations represent the principal indications for surgery we show that the main reason for surgical management was the alteration in laboratory tests [7]. It can be explain for the nature of our institution as a reference center for diagnosis and management of adrenal masses, in which a great percent of patients had a previously clinical record and came with a specific treatment for their symptoms. However, clinical presentation and annual growth of masses are the most important features in decide the surgical management in patients [8].

In addition, we report the incidence of intra and postoperative complications. It was evident the increase bleeding risk associated with the use of laparotomy compared with conventional laparoscopy. It is congruent with previous reports where the bleeding risk is higher with open approach versus laparoscopic surgery [9] [10]. The incidence of surgical site infection did not differ between both approaches in our study, but literature report an increase risk in the laparotomy group associated with the injury magnitude. There is no difference in hospital stay, we thing this can be related with the associated comorbidities of patients in both groups.

Finally, in the pathological diagnosis we showed a different trend in contrast with the literature. We confirm the higher prevalence of non-functional adenomas. But, in the group of functional masses we present more aldosterone producing adenomas, followed by cortisol producers. In the Cadwood study, the main functional mass present with a sub clinic Cushing syndrome and the last in prevalence was those that produce aldosterone [2].


Conclusion

We present practical evidence about the workup, diagnosis and management of suprarenal mass. We confirmed previous information obtained in studies, that increased use of laparoscopic approach for the management of surgical abdominal conditions like adrenal incidentalomas leads to decrease incidence of complications like bleeding. We report the importance of extending the use of the laparoscopic approach, regardless of the mass size or malignant potential which were two contraindications in the past.


References
  1. Herrera MF, Grant CS, van Heerden JA, Sheedy PF, Ilstrup DM. Incidentally discovered adrenal tumors: an institutional perspective. Surgery 1991 Dec;110(6):1014–21.   [Pubmed]    Back to citation no. 1
  2. Cawood TJ, Hunt PJ, O'Shea D, Cole D, Soule S. Recommended evaluation of adrenal incidentalomas is costly, has high false-positive rates and confers a risk of fatal cancer that is similar to the risk of the adrenal lesion becoming malignant; time for a rethink? Eur J Endocrinol 2009 Oct;161(4):513–27.   [CrossRef]   [Pubmed]    Back to citation no. 2
  3. Germain A, Klein M, Brunaud L. Surgical management of adrenal tumors. J Visc Surg 2011 Sep;148(4):e250–61.   [CrossRef]   [Pubmed]    Back to citation no. 3
  4. Gonzalez RJ, Shapiro S, Sarlis N, et al. Laparoscopic resection of adrenal cortical carcinoma: a cautionary note. Surgery 2005 Dec;138(6):1078–85; discussion 1085–6.   [CrossRef]   [Pubmed]    Back to citation no. 4
  5. Saunders BD, Doherty GM. Laparoscopic adrenalectomy for malignant disease. Lancet Oncol 2004 Dec;5(12):718–26.   [CrossRef]   [Pubmed]    Back to citation no. 5
  6. Zeiger MA, Thompson GB, Duh QY, et al. The American Association of Clinical Endocrinologists and American Association of Endocrine Surgeons medical guidelines for the management of adrenal incidentalomas. Endocr Pract 2009 Jul-Aug;15 Suppl 1:1–20.   [CrossRef]   [Pubmed]    Back to citation no. 6
  7. Shen WT, Sturgeon C, Duh QY. From incidentaloma to adrenocortical carcinoma: the surgical management of adrenal tumors. J Surg Oncol 2005 Mar 1;89(3):186–92.   [CrossRef]   [Pubmed]    Back to citation no. 7
  8. Terzolo M, Stigliano A, Chiodini I, et al. AME position statement on adrenal incidentaloma. Eur J Endocrinol 2011 Jun;164(6):851–70.   [CrossRef]   [Pubmed]    Back to citation no. 8
  9. Lee J, El-Tamer M, Schifftner T, et al. Open and laparoscopic adrenalectomy: analysis of the National Surgical Quality Improvement Program. J Am Coll Surg 2008 May;206(5):953–9; discussion 959–61   [CrossRef]   [Pubmed]    Back to citation no. 9
  10. Ariyan C, Strong VE. The current status of laparoscopic adrenalectomy. Adv Surg 2007;41:133–53.   [CrossRef]   [Pubmed]    Back to citation no. 10
[HTML Abstract]   [PDF Full Text]

Author Contributions:
Francisco Javier Díaz – Substantial contributions to conception and design, Acquisition of data, Analysis and interpretation of data, Drafting the article, Revising it critically for important intellectual content, Final approval of the version to be published
Martha Catalina Morales – Analysis and interpretation of data, Revising it critically for important intellectual content, Final approval of the version to be published
Maria Laura Ricardo – Analysis and interpretation of data, Revising it critically for important intellectual content, Final approval of the version to be published
Manuel Enrique Cadena – Analysis and interpretation of data, Revising it critically for important intellectual content, Final approval of the version to be published
Guarantor of submission
The corresponding author is the guarantor of submission.
Source of support
None
Conflict of interest
Authors declare no conflict of interest.
Copyright
© 2016 Francisco Javier Díaz et al. This article is distributed under the terms of Creative Commons Attribution License which permits unrestricted use, distribution and reproduction in any medium provided the original author(s) and original publisher are properly credited. Please see the copyright policy on the journal website for more information.
